Collection: Grainger BX Replacement Belts

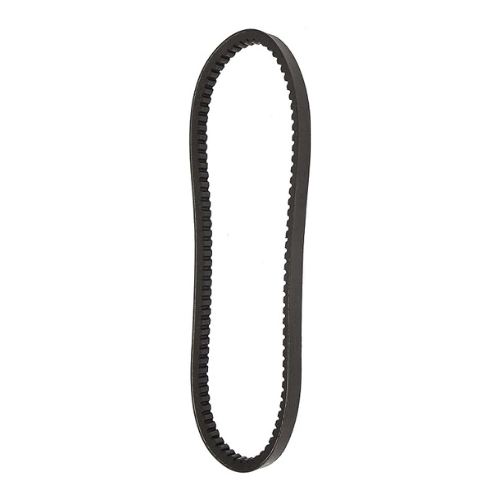

Grainger Classic BX Section V-Belts
Grainger Classic BX Section V-Belts are heavy-duty power transmission belts with a precision trapezoidal cross-section, designed to fit securely into matching V-belt pulley grooves. Built from high-quality rubber or synthetic compounds reinforced with strong fiber cords, these belts deliver excellent durability, flexibility, and load-carrying capacity.
Ideal for industrial, agricultural, and automotive machinery, BX section V-belts use a wedging action to increase grip, reduce slippage, and ensure efficient power transfer across a wide range of speeds. Their straightforward design allows for easy installation and low maintenance, making them a trusted, cost-effective solution for reliable mechanical drive performance.
| Grainger Item # | Industry V-Belt # | Outside Diameter | Top Width | Depth |
|---|---|---|---|---|
| 5TXL1 | BX25 | 25" | 5/8" | 13/32" |
| 5TXL2 | BX27 | 27" | 5/8" | 13/32" |
| 5YXL3 | BX28 | 28" | 5/8" | 13/32" |
| 5TXL4 | BX29 | 29" | 5/8" | 13/32" |
| 5TXL5 | BX30 | 30" | 5/8" | 13/32" |
| 5TXL6 | BX31 | 31" | 5/8" | 13/32" |
| 3GWZ8 | BX32 | 32" | 5/8" | 13/32" |
| 5TXL7 | BX33 | 33" | 5/8" | 13/32" |
| 3GWZ9 | BX34 | 34" | 5/8" | 13/32" |
| 6L267 | BX35 | 35" | 5/8" | 13/32" |
| 6A123 | BX36 | 36" | 5/8" | 13/32" |
| 3GXA1 | BX37 | 37" | 5/8" | 13/32" |
| 6A124 | BX38 | 38" | 5/8" | 13/32" |
| 3GXA2 | BX39 | 39" | 5/8" | 13/32" |
| 6A126 | BX46 | 46" | 5/8" | 13/32" |
| 13W529 | BX47 | 47" | 5/8" | 13/32" |
| 6A127 | BX48 | 48" | 5/8" | 13/32" |
| 13W530 | BX49 | 49" | 5/8" | 13/32" |
| 6L268 | BX50 | 50" | 5/8" | 13/32" |
| 6L269 | BX51 | 51" | 5/8" | 13/32" |
| 6L270 | BX52 | 52" | 5/8" | 13/32" |
| 6L271 | BX53 | 53" | 5/8" | 13/32" |
| 6L272 | BX54 | 54" | 5/8" | 13/32" |
| 6A128 | BX55 | 55" | 5/8" | 13/32" |
| 6A129 | BX56 | 56" | 5/8" | 13/32" |
| 6L273 | BX57 | 57" | 5/8" | 13/32" |
| 6L274 | BX58 | 58" | 5/8" | 13/32" |
| 6L275 | BX59 | 59" | 5/8" | 13/32" |
| 6A130 | BX60 | 60" | 5/8" | 13/32" |
| 6L276 | BX61 | 61" | 5/8" | 13/32" |
| 6L277 | BX62 | 62" | 5/8" | 13/32" |
| 6L278 | BX63 | 63" | 5/8" | 13/32" |
| 6L279 | BX64 | 64" | 5/8" | 13/32" |
| 6A131 | BX65 | 65" | 5/8" | 13/32" |
| 6L280 | BX66 | 66" | 5/8" | 13/32" |
| 6L281 | BX67 | 67" | 5/8" | 13/32" |
| 6A132 | BX68 | 68" | 5/8" | 13/32" |
| 6L282 | BX70 | 70" | 5/8" | 13/32" |
| 6A133 | BX71 | 71" | 5/8" | 13/32" |
| 3GXA7 | BX72 | 72" | 5/8" | 13/32" |
| 3GXA9 | BX74 | 74" | 5/8" | 13/32" |
| 6A134 | BX75 | 75" | 5/8" | 13/32" |
| 3HFC9 | BX76 | 76" | 5/8" | 13/32" |
| 6L283 | BX77 | 77" | 5/8" | 13/32" |
| 6L284 | BX78 | 78" | 5/8" | 13/32" |
| 6L286 | BX80 | 80" | 5/8" | 13/32" |
| 6L287 | BX81 | 81" | 5/8" | 13/32" |
| 6L288 | BX82 | 82" | 5/8" | 13/32" |
| 6L288 | BX82 | 82" | 5/8" | 13/32" |
| 6L289 | BX83 | 83" | 5/8" | 13/32" |
| 3GXC1 | BX84 | 84" | 5/8" | 13/32" |
| 6A135 | BX85 | 85" | 5/8" | 13/32" |
| 3GXC2 | BX86 | 86" | 5/8" | 13/32" |
| 3GXC3 | BX87 | 87" | 5/8" | 13/32" |
| 13W531 | BX88 | 88" | 5/8" | 13/32" |
| 3GXC4 | BX89 | 89" | 5/8" | 13/32" |
| 6A136 | BX90 | 90" | 5/8" | 13/32" |
| 6L254 | BX90 | 90" | 5/8" | 13/32" |
| 6HFD1 | BX91 | 91" | 5/8" | 13/32" |
| 3GXC5 | BX92 | 92" | 5/8" | 13/32" |
| 6L290 | BX93 | 93" | 5/8" | 13/32" |
| 13W532 | BX94 | 94" | 5/8" | 13/32" |
| 6L291 | BX95 | 95" | 5/8" | 13/32" |
| 6L292 | BX96 | 96" | 5/8" | 13/32" |
| 6L293 | BX97 | 97" | 5/8" | 13/32" |
| 6L294 | BX99 | 99" | 5/8" | 13/32" |
| 6L295 | BX100 | 100" | 5/8" | 13/32" |
| 3VU45 | BX103 | 103" | 5/8" | 13/32" |
| 6L296 | BX105 | 105" | 5/8" | 13/32" |
| 3GXC6 | BX106 | 106" | 5/8" | 13/32" |
| 6L297 | BX108 | 108" | 5/8" | 13/32" |
| 6A137 | BX112 | 112" | 5/8" | 13/32" |
| 6L298 | BX113 | 113" | 5/8" | 13/32" |
| 6L299 | BX115 | 115" | 5/8" | 13/32" |
| 6L300 | BX116 | 116" | 5/8" | 13/32" |
| 6L301 | BX120 | 120" | 5/8" | 13/32" |
| 6L302 | BX124 | 124" | 5/8" | 13/32" |
| 3GXC7 | BX126 | 126" | 5/8" | 13/32" |
| 6L303 | BX128 | 128" | 5/8" | 13/32" |
| 6L303 | BX128 | 128" | 5/8" | 13/32" |
| 6L304 | BX133 | 133" | 5/8" | 13/32" |
| 6L305 | BX136 | 136" | 5/8" | 13/32" |
| 6L306 | BX144 | 144" | 5/8" | 13/32" |
| 6L306 | BX144 | 144" | 5/8" | 13/32" |
| 6L307 | BX150 | 150" | 5/8" | 13/32" |
| 6L308 | BX158 | 158" | 5/8" | 13/32" |
| 6L309 | BX162 | 162" | 5/8" | 13/32" |
| 6L310 | BX173 | 173" | 5/8" | 13/32" |
| 6L311 | BX180 | 180" | 5/8" | 13/32" |
| 6L312 | BX195 | 195" | 5/8" | 13/32" |
| 6L313 | BX210 | 210" | 5/8" | 13/32" |
| 3GXC8 | BX225 | 225" | 5/8" | 13/32" |
| 6L314 | BX240 | 240" | 5/8" | 13/32" |
